Neem Seed Oil Production Line

Neem seed oil production begins with harvesting mature neem seeds from neem trees. The seeds are then cleaned to remove any dirt or debris. Next, the seeds are dried to reduce moisture content, which helps in easier extraction. Once dried, the seeds are crushed or ground to a fine powder. The powder is then subjected to a mechanical expeller to extract the oil. The extracted oil is filtered to remove any impurities and stored in tanks. Finally, the neem seed oil is packaged for distribution.

1. Harvesting: Mature neem seeds are harvested from neem trees.
2. Cleaning: The harvested seeds are cleaned to remove dirt and debris.
3. Drying: The cleaned seeds are dried to reduce moisture content. Drying can be done using sunlight or a mechanical dryer.
4. Crushing/Grinding: The dried seeds are crushed or ground to a fine powder. This increases the surface area for oil extraction.
5. Extraction: The neem seed powder is subjected to a mechanical expeller to extract the oil.
6. Filtration: The extracted oil is filtered to remove any impurities. Filtration can be done using filter presses.
7. Storage: The filtered neem seed oil is stored in tanks to await further processing or packaging.
8. Packaging: The neem seed oil is packaged into containers for distribution and sale.Packaging is done according to industry standards and customer requirements.

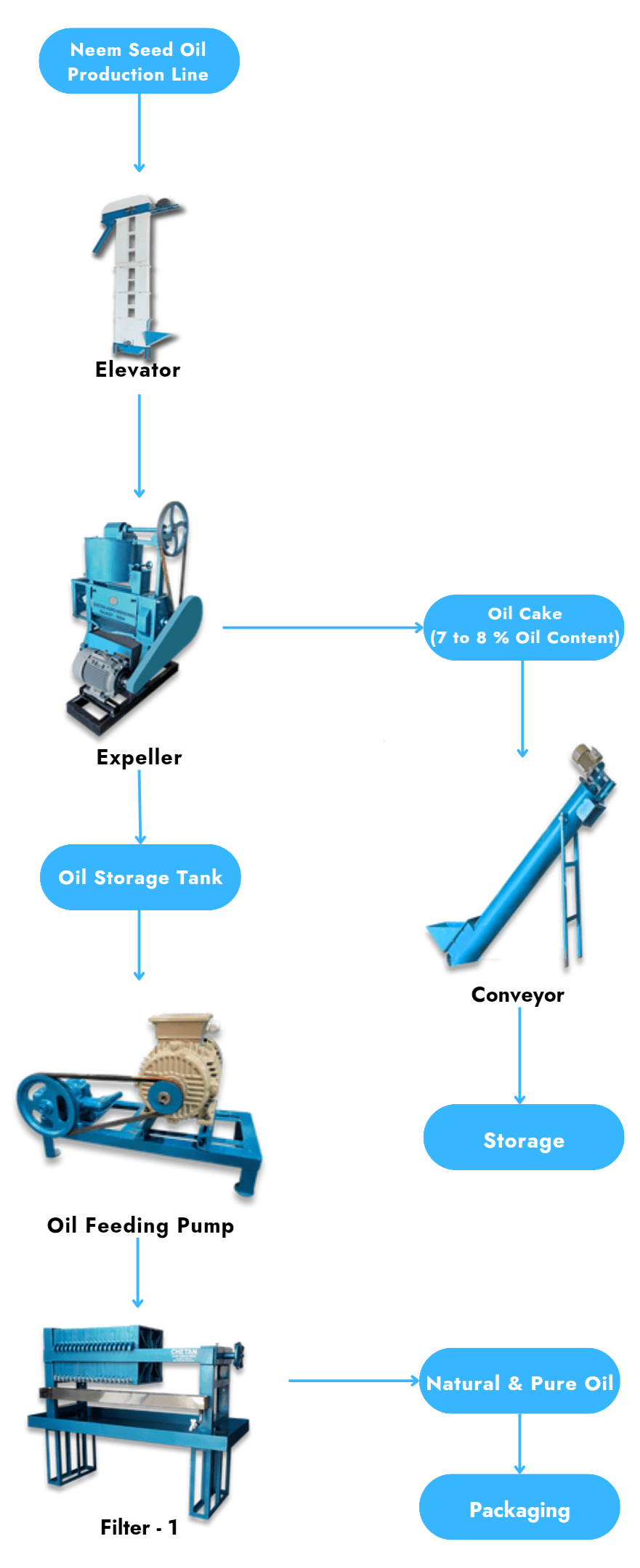

Neem Seed Processing: Flow Chart and Machinery Overview

Neem Seed Processing Machinery Showcase: Innovation for Efficiency

Oil Extraction Machines

Capacity:
200 to 4000

kg/hr

Power:
30 to 300

hp

Usage: Multy Seed Oil Extraction
Capacity:
( 5 TPD ) 150 to 200

kg/hr

Power:
15

hp

Usage: Multy Seed Oil Extraction
Capacity:
( 3TPD ) 100 to 125

kg/hr

Power:
15

hp

Usage: Multy Seed Oil Extraction
Capacity:
300 to 350

kg/hr

Power:
30

hp

Usage: Multy Seed Extraction
Capacity:
150 to 200

kg/hr

Power:
10

hp

Usage: Multy Seed Oil Extraction
Capacity:
100 to 125

kg/hr

Power:
10

hp

Usage: Multy Seed Oil Extraction
Capacity:
25 to 300

kg/hr

Power:
5

hp

Usage: Multy Seed Oil Extraction

Oil Filtration System

Capacity:
300 to 550

ltr/hr

Power:
2 to 5

hp

Usage: All Type Edible Oil Can Filter
Capacity:
50 to 350

ltr/hr

Power:
1 to 3

hp

Usage: All Type Edible Oil Can Filter
Capacity:
150 to 1000

ltr/hr

Power:
0.5 to 3

hp

Usage: Oil Feed for Filter Press
Capacity:
200 to 1000

ltr/hr

Power:
3

hp

Usage: Separating Dust or Impurity From Oil

Material Handling Equipment

Capacity:
250

kg/hr

Power:
1

hp

Usage: Material Handling Equipment
Capacity:
500 to 5000

kg/hr

Power:
1 to 3

hp

Usage: Material Handling Equipment
